Recent Adventures in oVirt and Gluster

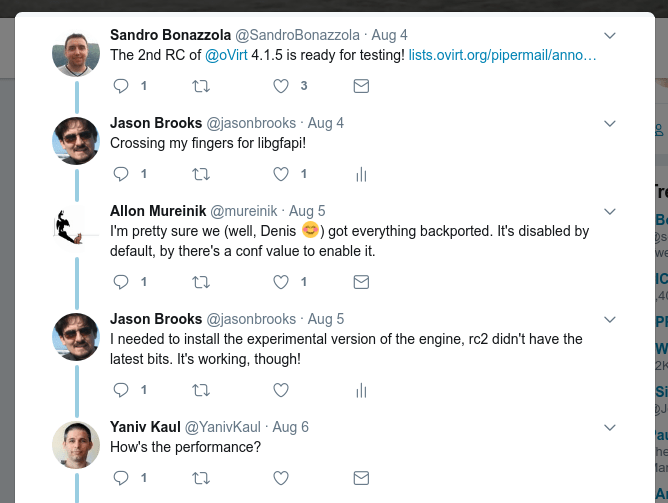

At the end of last week, I spied an exciting tweet about oVirt:

libgfapi-ready

Not long after I started using oVirt and Gluster together, the projects started talking about a way to improve Gluster performance by enabling virtualization hosts to access Gluster volumes directly, using Gluster’s libgfapi, rather than through a FUSE-mounted location on the virtualization host. There was a little bit of fit and finish work to be done, and then we’d all be basking in the glow of ~30% better Gluster storage performance.

That was about four years ago. There ended up being kind of a lot of different little things that needed fixing to make this feature work in oVirt. You can follow many of the twists and turns in bugzilla.

All along, I was eagerly awaiting the feature both as a cool new oVirt+Gluster development and as a welcome option for speeding up my own lab. Disk has always been the weakest part of my hardware setup. My servers each have a single pair of 1TB drives in mirrored RAID, shared between Gluster and the OS, and my VM’s virtual drives had been stored in triplicate in replica 3 Gluster volumes. More recently, with the advent of Gluster arbiter bricks, I’ve been able to get the split-brain protection of replica 3 volumes with only two copies of the data, and that sped things up a bit, but did nothing to dampen my appetite for libgfapi.

Since I need my oVirt setup to get things done, I usually don’t test RC versions of new oVirt components there, but I couldn’t wait any longer and took the plunge. I installed the RC2 updates on each of my virt hosts, and on my engine, I installed a slightly newer versionof the code, from the experimental repo, which contained a few last bits that hadn’t made RC2. Then, on my engine, I ran:

# engine-config -s LibgfApiSupported=true
# systemctl restart ovirt-engine

Any VMs that were already running before the upgrade continued running without libgfapi, and if I migrated them to another host, they’d turn up on that host still using the old access method. When I restarted my VMs, they returned using libgfapi. I could tell which was which by grepping through the qemu processes on a particular VM host.

# ps ax | grep qemu | grep 'file=gluster\|file=/rhev'

-drive file=/rhev/data-center/00000001-0001-0001-0001-00000000025e/616be2b6-71db-4f54-befd-be6a444775d7/images/3f7877e7-e532-44a0-8735-c7b2ca06de3b/48ee34fc-ae12-494c-892f-4229fe1fef9d

-drive file=gluster://10.0.20.1/data/616be2b6-71db-4f54-befd-be6a444775d7/images/6597f45a-51cd-4da5-b078-a2652baf78e4/cc3a575e-27b8-4176-b922-9466273153be

The qemu command lines are super long, so I cut them down just to include the line specifying the virtual drives. In the first example, the drive is being accessed through a FUSE mount, and the second, there’s a direct connection to the Gluster volume.

So, how was performance?

I tried a few different tests, starting with runningddon one of my VMs:

# dd bs=1M count=1024 if=/dev/zero of=test conv=fdatasync && rm test

I ran this a bunch of times on a VM in both storage configurations and the libgfapi configuration came out about 44% faster on average.

For a more “real world” test, I figured I’d measure the time it takes to complete a common task of mine: configuring a test Kubernetes cluster from three Fedora Atomic Host VMs using the upstream ansible scripts. I recorded and averaged the time it took to complete this task across multiple runs on VMs running in each storage configuration, and found that libgfapi was 11% faster.

zram madness

Not too bad, but like I said earlier, my oVirt setup can use all the storage speed help it can get. My servers don’t have a lot of disk but they do have quite a bit of RAM, 256GB apiece, so I’ve long wondered how I could use that RAM to wring more speed out of my setup. For a few months I’ve been experimenting with using Gluster volumes backed by RAM-disks, using zram devices.

This actually works pretty well, and I was seeing speeds similar to what I get running on the SSD in my laptop. Of course, RAM-disks mean losing everything on the disk in the event of a reboot (expected or otherwise), but using replica 3 Gluster volumes, I could reboot one host at a time without losing everything else. Upon bringing back the rebooted host, I’d run a little script to recreate the zram device and the mount points, and then follow the Gluster instructions for replacing a failed brick.

# cat fast.sh
ZRAMSIZE=$((1024 * 1024 * 1024 * 50))
modprobe zram
echo ${ZRAMSIZE} > /sys/class/block/zram0/disksize
mkfs -t xfs /dev/zram0
mkdir -p /gluster-bricks/fast
mount /dev/zram0 /gluster-bricks/fast
mkdir /gluster-bricks/fast/brick

However, if all of my machines went down at once, due to a power failure in the lab or something like that, replication wouldn’t help me. I wondered if I could still get a significant boost out of a mixture of zram and regular disk backed volumes, with each of my servers hosting one zram-backed brick, one regular disk-backed brick, and one regular disk-backed arbiter brick, all combined into one distributed-replicated Gluster volume.

brick-house

I ran my same ansible-kubernetes setup tests with the VM drives hosted from my “fast” Gluster domain, and the tests run 32% faster than with the my regular disk-backed (and now libgfapi-enabled) “data” storage domain. Pretty nice, and, in this sort of setup, a power loss would mean that each of four replica groups would be missing one brick, with a remaining data brick and an arbiter brick still around to maintain the data and allow me to repair things.

I want to experiment a bit further with automated tiering in Gluster, where I’d connect a RAM-disk boosted volume like this to the volume for my main data domain, and frequently-accessed files would automatically migrate to the faster storage. As it is now, my fast domain has to be relatively small, so I have to budget my use of it.
